Description
Product model：POLINA CP55

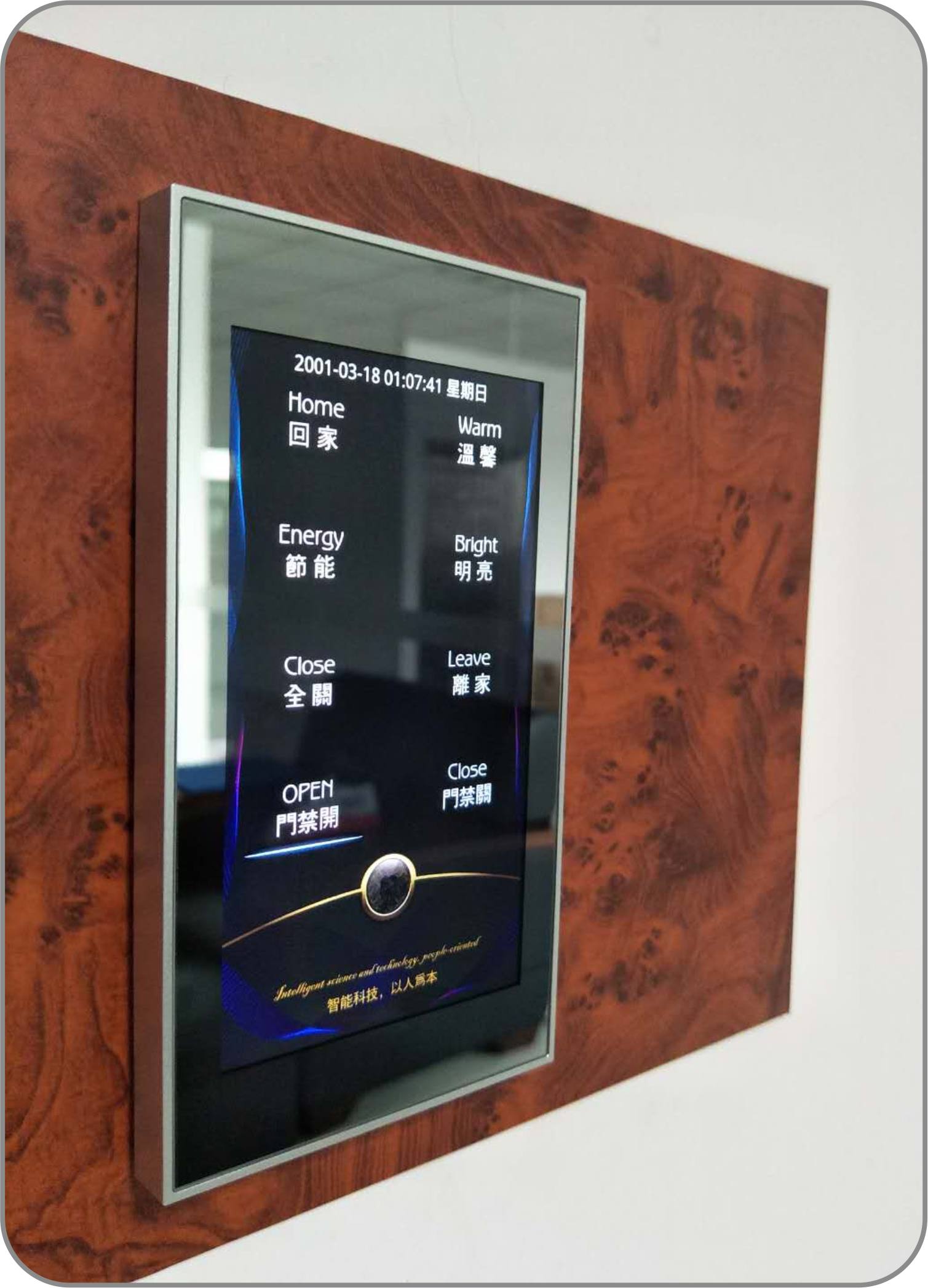

Structural type ：5.5-inch Editable LCD Touch Screen
Design 5.5-inch Editable LCD Touch Screen；Multi-screen switching can be set ，Screen button, icon customization ；Each key can customize the sending code ；Standard 485 communication mode with variable baud rate。
Screen display: 5.5-inch
Touch screen type ：Capacitive touch screen
PPI：720 x 1280 Pixe
VIEW：180°vertical ,180°level ,Tilt angle 30°
communication method：RS-485Standard serial bus，Communication rate 1200～256000 bps Set up ，length ：8 bits，No check ，Stop bit 1
Interface ：A 5Pin socket and a USB port 工作电源：DC12V--DC24V
Power waste ：Working mode 150 mA – sleep mode 40 mA
hell ：Panel Glass Material ，Shell Aluminum ，Bottom Box Flame Retardant ABS Material
bottom box ： Standard 86
size (mm) 160(H) x 90(W) x 36(D)
