Description
POLINA CS series power amplifiers are high-performance and cost-effective products designed specifically for the professional audio industry. They use high-stability and high-speed response switching power supply technology, which greatly reduces the weight of the machine, while improving its stability and durability. In addition, the circuit is designed with multiple protection circuits, which can work easily even in the most demanding environments.

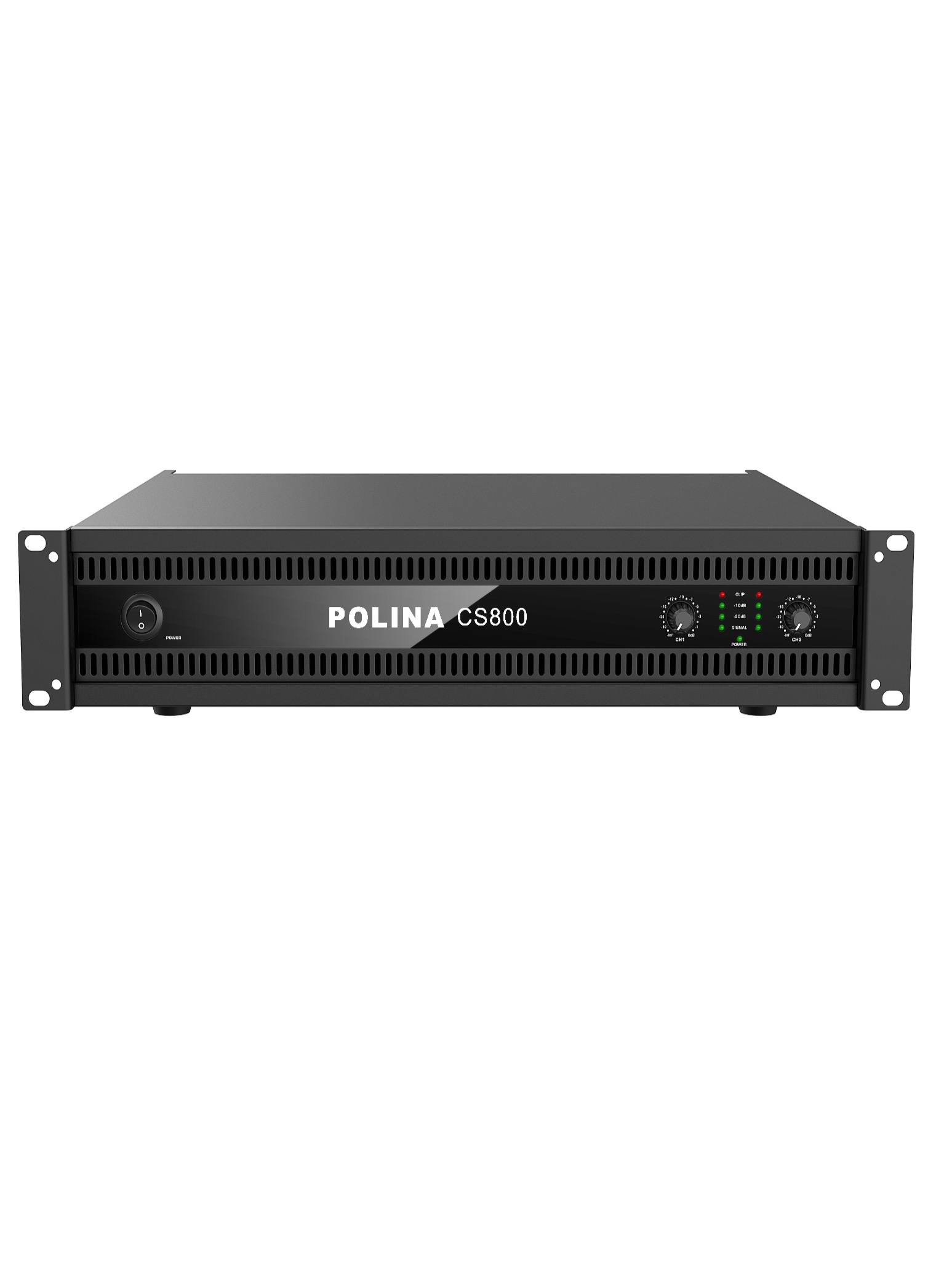

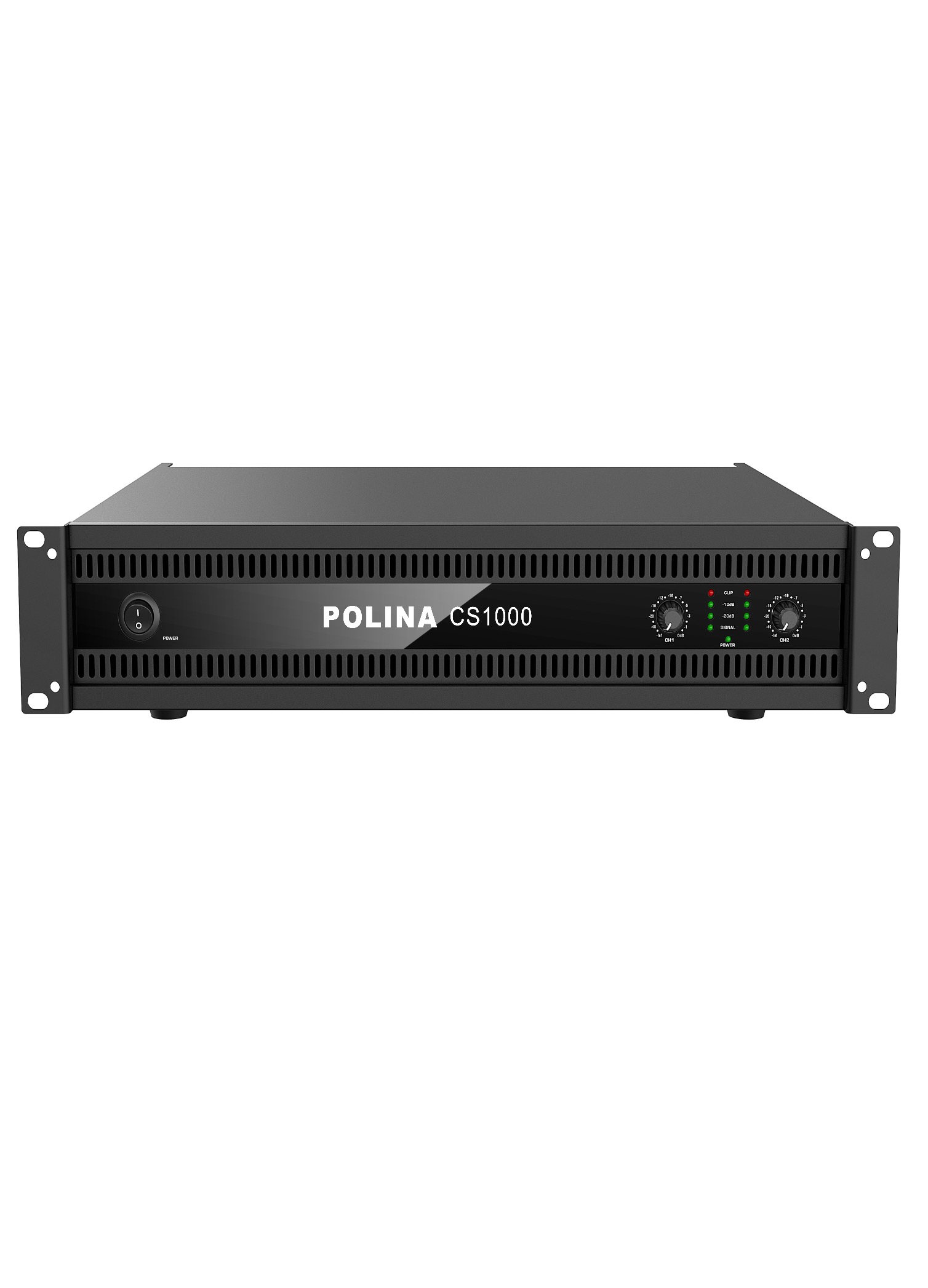

The CS series power amplifiers include four models: CS1000, CS800, CS600, and CS400, which can meet the power requirements of all KTV speakers. All models use sturdy all-steel shells, with reliable design and innovative features. These amplifiers are characterized by clear sound quality, full sound, clear and bright high-frequency, powerful and full low-frequency, and excellent overall performance. Whether used in large venues such as dance halls, KTVs, bars, or small venues such as home theaters, the CS series power amplifiers can perform well.
In summary, if you are looking for a high-performance and cost-effective professional audio power amplifier product, POLINA's CS series power amplifiers are a choice you cannot afford to miss.
| CS series professional power amplifier parameters | ||||
| Translation: | ||||
| Parameter / Model | CS1000 | CS800 | CS600 | CS400 |
| Performance Metrics | ||||
| Minimum Power (1KHz THD=1%) 8Ω, dual-channel drive | 1000W×2 | 800W×2 | 600W×2 | 400W×2 |
| Minimum Power (1KHz THD=1%) 4Ω, dual-channel drive | 1300W×2 | 1050W×2 | 780W×2 | 520W×2 |
| Frequency Response | 20-20KHz/±0.5dB | |||
| Total Harmonic Distortion | <0.08%(-3dB Power 8Ω/1KHz) | |||
| Signal-to-Noise Ratio | >90dB | |||
| Input Sensitivity | 0.775V(８Ω) | |||
| Damping Factor | >200(20-500Hz/8Ω) | |||
| Conversion Rate | >15V/μS | |||
| Input Impedance | 20KΩ/balanced, 10KΩ/unbalanced | |||
| Output Type | AB | |||
| Protection | Protection against soft start, short circuit, DC, overheating, RF interference, limiter, and mute when power on/off. | |||
| Power Requirements | AC220V/50Hz | |||
| Rear Panel Functions, Controls and Connectors | ||||
| Input Connector | Balanced input Cannon plug/Cannon socket (1 pin for shield, 2 pin for positive, 3 pin for negative) | |||
| Output Connector | Speaker screw socket/terminal block | |||
| Input Mode Switch | Stereo (DUAL)/Parallel (LINK) | |||
| AC Input Connector | I-shaped AC input power socket with fuse | |||
| Front Panel Functions, Controls and LED Displays | ||||
| Active Limiter Protection Light-CLIP | One red LED light per channel | |||
| Signal Indicator Light-SIGNAL | One green LED light per channel-SIGNAL/-20dB/-10dB | |||
| Power Indicator Light-POWER | One blue LED light per channel | |||
| Gain Controller | 24-step gain controller | |||
| Power Switch | AC power input control switch | |||
| Structure | ||||
| Ventilation and Cooling | Forward and backward blowing, continuously variable speed forced cooling | |||
| Dimensions | 483x88x335mm | |||
| Net Weight | - | 11.00kg | ||
| Shipping Weight | - | 13.00kg | ||
